For your projects, deciding between a CNC router and a CNC mill can be very important. Though these two machines may look alike, their specific designs and functionalities serve different purposes. Understanding the differences is important when dealing with woodwork, metalwork, or prototyping.This post will walk you through the most prominent differences between CNC routers and CNC mills, diving deeper into their characteristics as well as areas of specialization and application. Great resources are waiting toward the end, so keep reading to find out which one suits your next project.

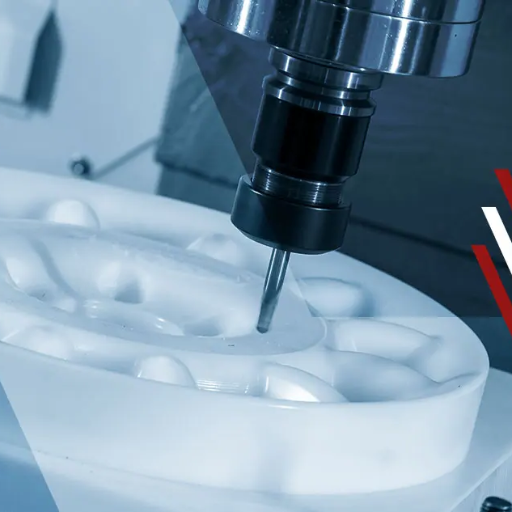

What are the fundamental differences between CNC routers and CNC mills?
The design, velocity, and application differentiate CNC routers from CNC mills. Softer materials such as wood, plastic, and some metals are cut with CNC routers. They operate at higher speeds suitable for large and detailed patterns.
CNC mills are heavier and work best with tougher materials like steel and aluminum. They are more rigid which enables precision work when crafting detailed parts, prototypes, and 3D structures. Overall, speed along with surface detail is the measuring scale for CNC routers while durability and precision with tough materials is measured for CNC mills.
Which Machine Should You Choose?
Your project requirements dictate the choice between a CNC mill and a CNC router.
- Choose a CNC Router if the work requires speedy operations and surface detailing for softer materials such as wood, plastic, and foam. Best for lightweight projects and designs that need intricate cutting.
- Use a CNC Mill if your work involves harder materials steel and aluminum and needs precision and durability, as it is ideally suited for detailed and robust parts machining. It is ideal for more strenuous operations and three-dimensional depth features.
Spindle Power and Cutting Capabilities in CNC Machines
Spindle power is of great importance to the cutting capabilities of CNC machines. The spindle motor which propels the cutting tool has a power rating in kilowatts (kW) or horsepower (HP). Generally, greater spindle power enables greater efficiency when cutting tougher materials or performing challenging jobs. For example, CNC routers have spindle power from 1 kW to 15 kW where they can efficiently cut soft materials, but CNC mills are equipped with spindles greater than 20 kW to cut hard materials such as steel or titanium.
When analyzing spindle power, feed rates and material removal rates (MRR) are critical measurement of cutting performance efficiency. A case in point, a CNC router may have lower spindle power, but it can achieve feed rates of 500 inches per minute (IPM) on softer materials like foam. In contrast, industrial-grade CNC mills with high-powered spindles, achieve a material removal rate of several cubic inches per minute with high precision, even on dense materials.
Another important factor is the spindle speed, which is noted in revolutions per minute (RPM). The spindle speed is higher on CNC routers, often between 10,000 and 24,000 RPMs which allows for softer materials to be cut more precisely. CNC mills on the other hand, might operate at 3,000 to 15,000 RPM while machining metals to reduce heat build up and prolong tool life. It is critical to know the relations between spindle power, speed, and the materials to be machined in order to ensure optimized performance and quality of the final product.
These days, factors like the fitting of variable-speed controls and the incorporation of thermal management systems into spindles have greatly enhanced the adaptability of spindles. This ensures that even the most demanding machining operations are done consistently on the thermal performance. While purchasing a CNC machine, never forget that efficiency and precision achieved hinges on bringing the spindle power and cutting capability in line with the specific requirements of the project.
Different types of workpiece materials that can be cut using these machines.
A range of workpiece materials such as metals, plastics, wood, and composites can be processed by different CNC machines. Clipboards made out of aluminum need machines with high spindle power, while steel needs equally strong cutting tools. Wood and plastics unlike metal are easier to machine and require far less power. For composites, specialized tools and strategies are often required to avoid damaging the material. The selection of machine should focus on the material’s hardness, density, and thermal characteristics in order to perform optimally.
Which materials can CNC routers and CNC mills effectively work with?
- Aluminum, steel, brass, and titanium are examples of metals.
- Acrylic, Polycarbonate, and PVC are plastics.
- Softwood, Hardwood and Plywood are types of wood.
- Carbon fiber and fiberglass belong to the composite materials group.
Advancements in CNC Router Technology for Various Materials
CNC routers have undergone technological changes that greatly improve their efficiency. Softer materials such as wood, plastic, and foam are more efficiently processed with these machines because of their powerful spindles and adjustable toolbox. Modern tools have cut a routing speed record of up to 1200 inches per minute, depending on the used item, with materials adding up to a further boost in productivity within furniture making and prototyping.
A good example of this is the woodworking industry, in which CNC routers are used to cut, carve or engrave complex patterns and designs into pieces of wood faster and with higher accuracy than conventional methods could achieve. Acrylic plastics such as polycarbonate are also common and popular plastics routed for signage, showcases, and custom parts where routers give edge finishes that need little to no extra work. Packaging and lightweight molds are crafted from high-density polyurethane foam with these machines, resulting in molds and packaging that are dimensionally precise.
The combination of CAD and CAM software results in streamlined workflows. The CNC router receives programs of complex designs, which eliminates human error and guarantees reproducible outcomes. Furthermore, advancements such as automatic tool changing systems have reduced downtime, enabling smooth transitions from one operation to another. For precision-and time-sensitive businesses, CNC routers have become essential equipment.
Hard Materials and Metals: Why CNC Mills Are Often Preferred
For hard materials and metals, I use CNC mills rather than CNC routers because the latter are much more durable and stronger. CNC mills are much more capable of cutting with accuracy and efficiency denser materials like steel, titanium, and aluminum, as these are specialty grade CNC mills. Their rigid structure and advanced cutting tools enable them to maintain accuracy even under high cutting pressure, making them the ideal choice for producing complex metal parts that require tight tolerances.
Differences in Material Capabilities between CNC Mills and CNC Routers
The design of the machine determines how various materials are handled. As such, CNC mills and routers differ considerably. CNC routers tend to be more lightweight and less stiff than their counterparts. This makes them suitable for materials that require less force to manipulate, like plastics and wood, especially when structured in foam. By contrast, the robust, rigid structure of CNC mills makes them more adept at performing complex machining operations, such as routing and milling dense materials, including titanium and steel. There is a direct correlation between the CAD/CAM processes utilized in modern CNC milling and the ISO volumetric precision standards observed within the aerospace industry. It has been reported that the latest mills maintain an astounding ±0.0001 inches supplier precision. The construction techniques used in the production of CNC mills around the globe assures CNC engineers that those tools will maintain consistent long-term performance CNC tooling cycles. Mills processors show a sustained production cycle performance CNC mills have the utmost cutting pressure, advanced tooling, and spindle systems.
More recent academic research dissects the performance of CNC routers within the scope of construction and design software-generated prototype models. Routes are more lightweight than mills due to their higher working speeds. Because CNC routers work on less dense and softer materials, they achieve improved finishing and smoother cutting processes that render less product waste with these materials. Sup-par CNC mold routers excel over CNC mills in terms of speed, reaching 25,000 RPM while performing.
Matching the machine’s functionality with the specific materials needed for a project is paramount when selecting between the two. If you want to carve intricate designs into softer materials, a CNC router may be ideal. A CNC mill offers unrivaled accuracy and power for heavy-duty work with metals, maintaining quality control to the strongest standards.
How do the technical specifications compare between CNC routers and CNC mills?
- Speed: CNC routers cut softer materials like wood and plastic at much higher speeds as compared to CNC mills which have greater force at lower speeds. This makes them capable of working with metals.
- Spindle Power: Spindles of CNC routers are not as advanced as those on CNC mills. As a result, routers struggle with dense materials while mills can cut them effectively.
- Accuracy: For more detailed and intricate work on harder materials, CNC mills are the best.
- Material Capability: CNC mills work on tough materials such as metal while CNC routers are limited to soft materials.
Movement Precision and Axes Capabilities Difference
The difference in Router’s precision movements and CNC mill’s axes capabilities impact the areas of application. CNC routers work within three axes, X, Y, and Z. This is convenient for linear processes like engraving or cutting. Meanwhile, CNC mills perform more complex tasks with the ability to rotate the workpiece due to more sophisticated configurations with additional axes; 4 or 5.
Accuracy wise, CNC mills have tighter tolerances and peak precision of around ±0.01 mm which is best suited for processes like mold making and other detailed machining. Routers have a slightly lower tolerance of around ±0.1 mm which is still adequate for machining foam, wood, and plastic since ultra precision is not as important.
These technical differences highlight the need to properly scope project requirements like the level of detail necessary, the type of material, and the intended outcome to ensure the most appropriate tool is selected.
Power, Speed, and Torque of Spindles in CNC Machinery
CNC machines greatly differ in performance and productivity based on three core factors: power, speed, and torque. The power of the spindle drives the saw, hence why its expressed in kw or HP. This also affects the quality of work a CNC machine can perform. For more challenging operations and materials, higher power is always an advantage.
Rotational speed, expressed in revolutions per minute (RPM), indicates the spindle’s turning speed. The optimal RPM differs with the material being worked on and the cutting tool applied. For example, softer materials like wood and plastics, require high RPMs in order to be cut cleanly and precisely. However, metals may need lower RPM to avoid excess heat generation and tool wear.
Torque, defined in terms of Newton meters (Nm), quantifies the spindle’s twisting force. It is most useful during operations requiring higher levels of force, such as drilling and milling, due to the need to continuously cut harder materials. Precision machines with very high torque capabilities deliver superior performance when cutting dense or stubborn materials to provide precise, smooth surfaces.
Choosing the correct interplay between the spindle power, RPM, and torque requires analysis of the machining operation and material at hand. Further developments CNC technologies are modifying these settings, increasing adaptation and efficiency in industrial works.
The Work Area and Workpiece Size Limitations for Each Machining Type
Every piece of machining equipment is characterized by a specific work area and workpiece size limitation which, alongside its versatility, efficiency, and productivity, plays a critical role in its overall effectiveness. Each type of CNC machine is built to accommodate specific parameters – smaller units are typically intended for finer parts, while larger machines can process bigger workpieces.
As an example, CNC fretting mills usually have axial working ranges from 10” x 10” to more than 50” x 50” and there are even more advanced industrial mills that go beyond these limits. Also, CNC lathes can accommodate workpieces whose diameters range from 6” to 80”, this also depends on the size of the machine and its intended applications. And, CNC routers which are commonly used for larger and lighter materials such as wood and foam can even surpass hundreds of inches in length and width which makes them appropriate for large scale projects.
With the latest technology multi axis CNC machines are now available which can handle more elaborate geometries of workpieces and execute them with higher accuracy. These machines frequently have rotary work tables or larger z-axes for 3 dimensional machining of huge workpieces to eliminate subsequent setup needed for additional operations. There is also more flexibility for meeting specific requirements for various industries, such as modular workspaces or adjustable ranges of the axes.
Choosing a machine with the right work area size enables manufacturers to streamline production processes, reduce waste, and enhance the machining potential for selected materials.
What are the cost considerations when choosing between a CNC router and a CNC mill?
While considering the purchase of a CNC router and a CNC mill, the cost evaluation includes the initial purchasing cost, maintenance, and operation for both items. CNC routers are typically cheaper and best for working on softer materials like wood, plastic, and foam. Their operating costs are low and specialized tooling is not required.
On the other hand, CNC mills costs much more to buy and maintain compared to CNC routers, but they are best for heavy-duty applications, cutting hard materials such as metals. Precision and durability come at a cost, but for some high-strength, high-accuracy machining requirements, it is well worth the expense. The decision of which to choose should depend on the budget, what materials need to be processed, and how much production is required.
CNC Routing vs CNC Mill Equipment: Initial Investment Cost
For other considerations, the operating costs for CNC routing and CNC milling vary greatly. Piecework pricing and time calculations for CNC routers and other pieces of equipment falls between 5,000 dollars and 15,000 dollars for entry level pieces. CNC routers also only need to work with softer materials like wood, foam, and plastic. They are easy to set up and operate, which is perfect for small businesses and self-employed makers.
Prices for CNC mills start at around $30,000 for entry-level models of the machines and can exceed $150,000 for advanced industrial grade options. Unlike CNC routers, mills are more expensive due to their construction quality, material processing precision, and their ability to cut dense materials such as steel and aluminum. They often possess some of the more sophisticated machining capabilities which come with more complex tools such as sophisticated spindle systems, tool changers, and advanced software which further increase the price of these models.
While considering the acquisition of either a CNC router or CNC mill, the total cost of ownership including required maintenance, servicing, software, and other peripherals should be factored in. For example, tools required for CNC mills are more expensive because they have to be capable of withstanding the more difficult machining processes. Understanding these less obvious factors can lead to making better and more strategic investment choices.
Operational costs and maintenance variations
CNC routers have lower operational costs than CNC mills in terms of energy, maintenance, and tooling, but differ in spending. CNC mills are more energy consuming as they require greater force while working on tough materials. For instance, CNC routers, having an energy-efficient workload, only consume 15-20 kW/h, while CNC mills spend 25-30 kW/h on tougher workloads. Also, the size of the machine impacts energy spending, and CNC Millers usually operate with larger machines.
Maintenance expenses have a similar pattern. CNC routers are cheaper to maintain, spending on routine them less frequently, about $300-$500 annually. Other than paying more for servicing, CNC mills require more complicated pieces, as well. CNC mills also pay for higher parts: $1,000+ annually from working on high precision spindles or using steel and titanium casters.
The tooling cost differences highlight the gaps even further. Although CNC router bits are reasonably priced, ranging from twenty to one hundred and fifty dollars based on material and usage, CNC mills have a significantly higher cost. High-speed steel cutters or carbide inserts start at forty dollars and can go up to hundreds of dollars. Additionally, due to the nature of heavy-duty operations, mill tooling has a shorter lifespan and needs to be replaced more frequently. This can significantly increase budget expenditures over time.
For businesses looking to improve machining processes while managing long-term costs, understanding these nuanced financial considerations is critical.
The Consequence of Laser Power on Operational Effectiveness
In laser systems, higher power means enhanced productivity, thus making it the best consideration when measuring the efficiency of the system and its cost. With rotary laser systems, cost and efficiency are directly related to the power of the laser. The higher the power, the quicker the marking time, cutting, and overall faster production. A practical example is a 50W fiber laser which marks metals up to 30% faster than a 20W laser, of course depending on the material and application. The downside, however, is increased power also equals higher energy usage which needs to be operational cost.
Also, companies have to keep in mind that the best laser power configuration differs with the type of material being worked on. Softer materials like plastics can be worked on with lower wattage systems, where plastics can receive the desired outcome without overexerting energy. Conversely, denser materials like stainless steel or titanium greatly benefit from higher powered lasers that can efficiently engrave or mark, preserving the depth without slowing down the marking or engraving process.
Finally, technology lasers now make it possible to attain greater power while still working in an energy-efficient manner. A lot of modern systems come with enhanced beam and thermal management, meaning that there is less power and energy that is being wasted, and reliability is improved. Because of this, evaluating the initial investment as well as the running cost becomes crucial for the choosing the strategy in laser applications.
Which applications are best suited for CNC routers vs CNC mills?
Applications involving softer materials like wood, plastic, foam, and light metals are where CNC routers shine the brightest. These devices perform impressively where construction involves extensive and intricate cutting at rapid speeds. As such, signage, decorative pieces, and furniture manufacturing can yield massive benefits from their usage.
CNC mills are best suited for processes that involve dealing with harder materials such as metals and require extreme accuracy such as steel and titanium. This precision equipment is almost ubiquitous in the fabrication of parts for the aerospace, automotive, and medical industries where the extreme reliability and precision of components is a must.
Why You Should Opt for a CNC Router for Woodworking and Prototype Fabrication
CNC routers are unparalleled when it comes to woodworking, prototype fabrication, and multitasking due to their wide range of applications. Aside from wood, CNC routers can cut, carve, or engrave softer metals like aluminum, plastic, foam, and even wood. Skilled router operators are capable of creating masterful designs with intricate detail due to the advanced features most modern machines boast, such as mulit-axis systems and multi-spindle auto tool changers. This makes CNC routers critical in furniture production, carpentry, artistry, and countless other industries.
Integrating CNC routers drastically improves efficiency while processing large-sized sheets of materials. This makes them remarkably suitable for constructing cabinets, processing panels, and performing complex decorative carvings. In terms of prototype development, the speed and flexibility of CNC routers greatly assist in performing rapid iteration as well as testing which reduces the time to market. Research indicates that CNC routers can deliver high precision cutting speed of 500 IPM, varying upon material type and tool setup. This feature makes them highly preferred for volume production.
Moreover, modern software integration enables effortless workflows by allowing designers to seamlessly import CAD files which get directly sent to the router. This feature guarantees the execution of the detailed design to be done with maximal precision, aiding mass production as well as single custom jobs. From a business perspective, woodworking professionals and creators working on rapid prototypes find a CNC router more useful due to its balance in speed, precision, and flexibility.
CNC Milling Machines: When They Are the Preferred Choice
CNC milling machines shine in removing large quantities of materials, finely sculpting three dimensional shapes, and machining harder materials (like metals) with precision. As opposed to softer woods and plastics, CNC routers work better on gentle materials, while steel, titanium, and aluminum are no match for milling machines that can cut through them effortlessly.
The most popular choice for tight tolerances or complex geometrical features is CNC milling. Take aviation or automotive industries for instance, components require exacting standards and precision that only milling machines can provide. CNC milling also gives a tighter tolerance of ±0.002 inches, as reported by a Manufacturing Global study, which proves it’s better for high-stakes projects.
Moreover, these tools are a boon for businesses with low production runs or custom parts due to flexibilities offered by lower volume custom parts. Milling machines efficiently tackle smaller batch sizes and multi-axis operations with configuration support from 3-axis to even 5-axis, carving intricate geometries that other equipment would find impossible.
CNC milling processes further emphasize their importance in contemporary manufacturing settings, as highlighted in a 2023 market analysis report which noted that CNC milling processes achieve a 30% reduction in lead time when compared to traditional machining processes. Furthermore, the advanced features of automated tool changers, coolant systems, and high-speed spindles were shown to increase productivity while decreasing downtime.
Industries that Benefit from CNC Milling Machines
Due to their versatility, precision, and ability to perform intricate designs, CNC milling machines are used in a wide variety of industries. The aerospace sector, for instance, utilizes CNC milling for the manufacture of complex engine parts and other structural elements to ensure safety and performance within critical industry standards. In the same manner, the automotive industry extensively utilizes CNC milling in prototyping and in the high-volume production of component parts such as gears, shafts, and engines. Recent market analysis indicates that the automotive industry alone represents almost one quarter of the CNC machining industry, underlining its importance to the industry.
Moreover, the biomedical sector adopts CNC milling for making surgical instruments, orthopedic implants, and dental devices where great accuracy and personalization are necessary. For patient-specific implants, CNC routing is critical for ensuring customized parts to within 0.001 inches of the desired measurement. There are reports stating that the rates of using CNC machining in the medical field are expected to increase by 8.9% of the overall usage from 2023 to 2030.
Along with that, the electronics sector uses CNC milling for board and device casing manufacturing, which requires extremely precise cuts and designs. This is essential, especially for the ever-growing consumer and industrial market that needs these parts for their systems.
Reference sources
- Study: Structural Design of a CNC Router Based on Optimization Technique1
- Objective: To explore the structural optimization of CNC routers for enhanced performance and material efficiency.
- Methodology: The study utilized computer-aided design (CAD) and structural analysis tools to optimize the design of CNC routers. It focused on reducing material usage while maintaining technical and aesthetic standards.
- Key Findings:
- Structural optimization significantly improved the efficiency and cost-effectiveness of CNC routers.
- The optimized designs ensured better stability and precision, making CNC routers a viable choice for specific applications like woodworking and light material processing.
- Top Hobby CNC Router Manufacturer And Supplier In China
Frequently Asked Questions (FAQs)
Q: What are the various categories of CNC machines?
A: The common CNC machines include CNC mills, CNC routers, CNC lathes, and CNC plasma and laser cutters. Each serves a certain purpose within the procedures of production. CNC mills are industrial machines meant for precise cutting of very hard metals. CNC routers are generally used when working with soft materials like wood, plastics, and soft metals. CNC lathes are used to make parts with a rotationally symmetrical shape by way of rotational cutting. Plasma and laser cutters are with thin sheets of material. Knowing the different types helps in picking the right CNC machine for a particular manufacturing task.
Q: What are the differences between CNC mill and CNC routers?
A: The differences between CNC routers and mills rest in the construction, the materials each processes and the precision of each machine. The structure of CNC routers and mills also greatly differ. Mills are constructed with a rigid frame to bear forces such as cutting used on hard metals. CNC routers are designed to be lighter as they are mostly used on wood, plastic and soft metals. Precision is CNC mills forte (along with powerful spindles) while CNC routers have larger working spaces. Along with this, routers are more effective when working with sheets or 2.5D cuts. We see that each have specific advantages for their structural differences.
Q: Do all types of CNC machinery have the same capabilities in terms of materials used?
A: No. Different types of CNC machinery have different capabilities with regard to the types of materials they can process. For example, a CNC mill can cut hardened steel or titanium, but a CNC router would be unable to process these metals effectively. On the other hand, CNC routers are geared towards cutting softer woods, plastics, foams, and other soft metals like aluminum. The mills do possess greater structural rigidity, more powerful spindles, and better cooling systems which enable them to work with tougher materials. This being said, there are some things that overlap, for example, both work with aluminum but a mill will achieve better results with the metal. The primary material you work with should be a major consideration when choosing between different CNC machines.
Q: In what ways do the three axes configurations of CNC mills and routers differ?
A: Both CNC routers and CNC mills operate on three axes of motion, X, Y, and Z. However, there are key differences in implementation. More robust Z axes are employed by CNC mills in comparison to routers. This greater travel distance and rigidity on the Z-axis permits deeper cuts and 3D contouring on harder materials. On the other hand, CNC routers have greater X and Y travel but more limited Z movement. Routers are primarily designed to work with sheet material. Both machines can be equipped with additional 4th or 5th axes for more advanced operations. Each design difference governing the implementation of axes on a CNC router and CNC mill affect the complexity of parts each machine can manufacture.
Q: What do you think is the best fit for hobbyists: CNC routers or CNC mill?
A: Observing from a hobbyist’s point of view, a CNC router would be the preferable option. A CNC router can be purchased for anywhere between a couple hundreds to a few thousand dollars. CNC Router prices generally begin at a couple thousand dollars. For a typical hobbyist who works with wood or plastics, soft metals, a CNC router provides more features. Better still, hobbyists don’t need to worry about infrastructure setup for milling; Unlike CNC mills, routers are self-sufficient when it comes to cooling and chip management. In terms of sound level “hobby” routers are quieter and less dangerous when cutting wood than CNC mills which cut metals. On the other hand, a small CNC mill is a worthy investment if precision metal work is your primary interest.
Q: In what ways do CNC routers and mills differ when it comes to software requirements?
A: Both utilize CAD and CAM, but their ecosystems differ in some respect. CNC routers are equipped with more basic software used in woodworking and signmaking, as the routing processes involve simpler 2.5D machining. More advanced CAM software is always required for CNC mills due to more intricate cutting operations, which include thread milling and complex 3D surfacing. The G-code might be different, too, as control functions for numerical control routers are often more primitive than those for advanced NC mills. Compared to CNC routers, CNC mills deal more interface-difficult software, which is why the latter require to be operated with more specialized technical expertise.
Q: What is the difference between end mills on CNC routers and CNC mills?
A: Although end mills appear the same, they serve different functions on CNC routers and CNC mills. Mill cutters are made from high-speed steel or cobalt and carbide since they need to endure extreme temperatures and stresses while cutting metal. Their geometry also includes features for chip evacuation when cutting metal. Sometimes referred to as end mills, router bits are often specially made for plastic and wood and have a different flute and cutting angle configuration. Their shanks also vary since CNC mills require larger diameter shanks, usually 1/2 inch or metric equivalents, for structural support, while CNC router bits typically have 1/4 or 1/8 inch shanks. The right type must be used to prevent breakage and dissatisfactory results.
